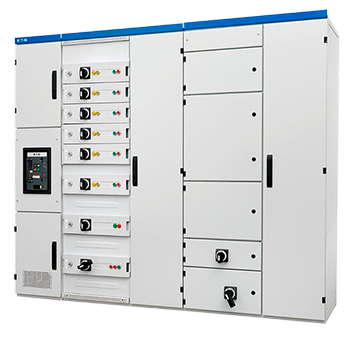

Our MDB's offer hassle-free performance, Long Operational life and are well known for their superior quality, durability, high mechanical strength and perfect finishing.
Design verified Power switchgear and Controlgear assembly as per IEC 61439-2 and type tested for internal errors (arc faults) as per IEC 61641
Modular sheet steel assembly system with 2 mm thickness and Internal segregation from form 1 to form 4 as per IEC 61439-2 with high level of corrosion resistance
Epoxy powder coated to RAL 7032/ RAL 7035 and folded construction for high rigidity
Fully type-tested panels up to 7000A (ASTA Certified) in compliance with all major Local & International regulations
Form-4 Construction in Fixed form or with Fully withdrawable Outgoing modules.

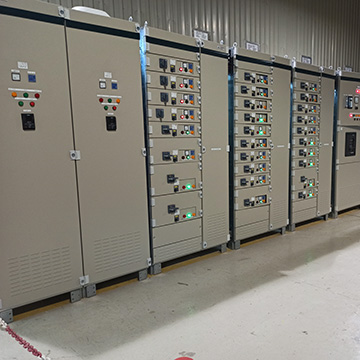

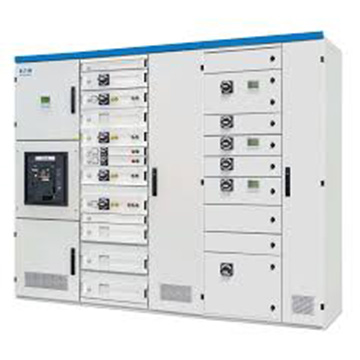

2. Motor Control centers
The MCC panels comply with Local & International standards and are available with multiple power stabs that help in supporting high capacity industrial motors as per the client specifications.
Fully type-tested panels including internal arc fault test
Form 2, 3 and 4 types of segregations
Form 4 with Fully withdrawable system for Process industries & Critical control systems
Busbar rating up to 7000 A
Available in fixed and draw out type of design
Provision of forced ventilation when required
IP ratings up to IP55 for Form-4 & IP65 for Form-2 Panels.
Fully front access boards, Front & Rear access boards & Rear access boards available.
Fault withstand of up to 50KA for 3 Seconds
3. Intelligent Motor Control Centers
Intelligent Motor Control Center solutions help you to maximize the availability of your plant, making sure that your process runs even in the event of a process stop, SIMOCODE pro enables it to run again.
Efficient operation, reduced engineering and integrated safety functions
Smooth operation, enhanced monitoring and data transparency
Reduced manufacturing time
Reduced testing time and integration into the supervisory system
Reduced breakdown times as easy replacement of Protection modules
Higher levels of communication with field BMS, DCS systems using various communication modes like PROFIBUS, Modbus RTU, PROFINET, Modbus TCP, etc.

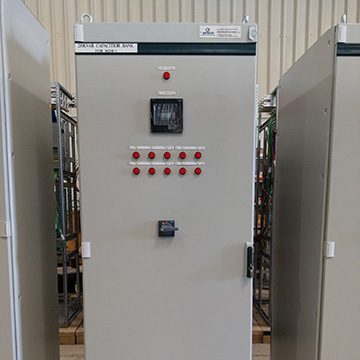

4. Capacitor Banks
Capacitor banks are primarily used to improve the power factor in the network. They also improve the voltage stability and reduce network losses. Improving the power factor also means a higher power transmission capability and increased control of the power flow.
Form 2 segregation as standard
Available in sheet steel enclosures up to IP54
Available with or without harmonic filters
Capacitor duty special contactors
Microcontroller based regulators
Top and bottom cable entry options
Adequate forced ventilation
Available in Type tested & Non-type tested forms

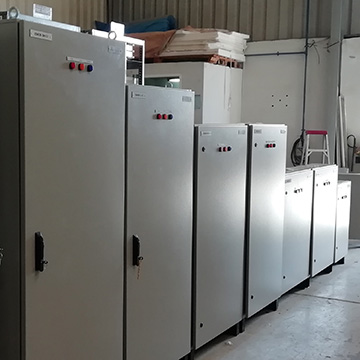

5. Sub main Distribution boards
Sub-main distribution boards meant for the secondary distribution of the Power from Main Boards to Final Distribution boards or Control Panels or End loads.
Available in Form 2, 3 and 4
Type Tested & Non-Type Tested solutions available
Fault withstand 36kA for 1 Second up to 250A and fault withstand of 36kA & 50kA for 1 Second for 400A and above.
Floor or wall-mounted with surface mounting options and IP ratings available up to IP 65, upon request with adequate space for cabling
Color shade available RAL 7032 / RAL 7035.
Panels in compliance with latest international standards and local regulations

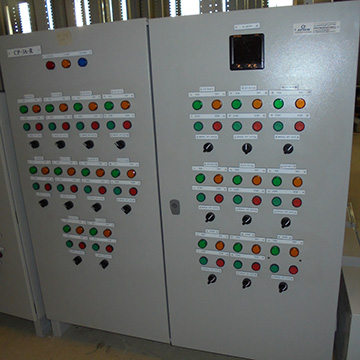

6. Starter & Lighting Control Panels
Starter panels for various applications as below:
Control Panels for RO Plants
Control Panels for Sewage Treatment plants
Control Panels for Desalination Plants
Control Panels for Pumping stations
Lighting Control panel for various applications as below:
Street Light control panels with 24-hour timer controlled, Photocell controlled or Astronomical timer base
Lighting control panels for Domestic applications with Timers
Staircase lighting control panels
Dimmer control panels for High-end Commercial Projects
Stadium Flood light control kiosks
Ballast Panels for Stadium lightings

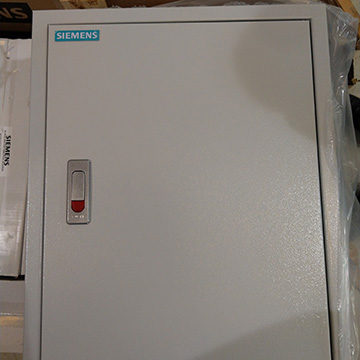

7. Final Distribution boards
A final distribution board (FDB) is an assembly of protective devices, including Isolators, ELCB/RCCBs, MCBs & RCBO/RCDs arranged for the distribution of electrical energy to the final circuits.
Form 2 segregation as standard
Sheet steel enclosures ranging from 1.2 mm thickness (standard) up to 1.5 mm (special project requirements)
Available in row type and pan assembly type upto 125A
IP ratings up to IP41
Single phase and three phase boards available up to 24 ways
Multiple row DB's available up to 6 rows (16 and 24 modules)
Floor or wall-mounted with surface and flush-mounting options
Panels in compliance with latest international standards and local regulation

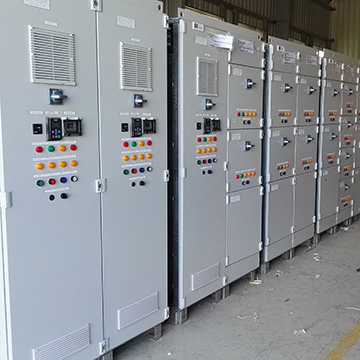

8. Variable Frequency drive Panels
A Variable frequency drive (VFD) is used as an energy saving device to save power and offers a cost-effective method to match driver speed load demands and protect the Motors in various industries.
Available range from 0.12kW to 1200kW
Different models for 1 Ph & 3 Ph Operations
VFD Panels with Bypass (DOL or S/D) starters as required
Suitable for Pumps, Fans, Compressors, Conveyor belts, Mills, Mixers, Crushers, Agitators and other machining works such as Turning, Milling & Drilling.
Modular, flexible drive system for Vector, Servo, VHz, single or multi-axis application custom drive systems with minimum engineering effort
Standardized interface, simple plant design and operation with the flexibility to match requirements of a vast array of pre-designed standard options
Multiple communication modes suitable for latest communication modules
Built in and Stand-alone systems available as per requirement

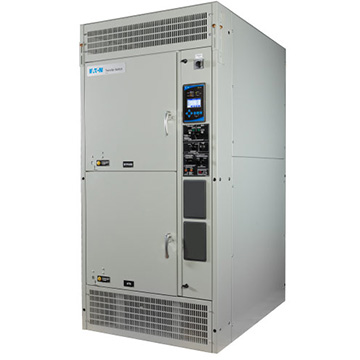

9. UL rated Auto Transfer switches
We offer a wide selection of automatic transfer switches that provides a safe and efficient means of transferring power from Utility to Generator source or between two Utility supplies.
Automatic transfer to a second power supply system in case of power failures
Optimum for industrial applications, infrastructure and buildings thanks to large voltage range from 100...690 VUL-L
Easy programming via software ATC
Monitoring of the main and substitution network, including neutral conductor monitoring
Integration in energy management systems via Modbus RTU
ATS System with single source Bypass arrangement
ATS System with double Bypass Isolation UL rated systems from EATON-USA which is highly recommendable for Critical sites like Hospitals, Hotels, Datacenters, etc.

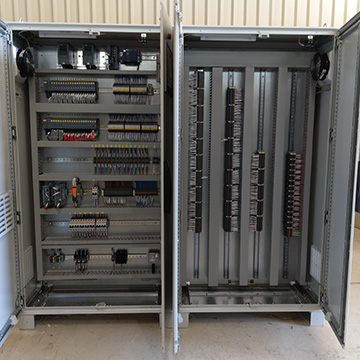

10. PLC Panels
PLC Control Panels for various automatic purposes can be Designed by us as per the specific requirements. Wide variety of Siemens SIMATIC controllers are used which offers powerful hardware for controlling all types of machines and plants. The capabilities of SIMATIC controllers are constantly being expanded with new functions
PLC Panels for Water related works like Pumping stations, RO Plants, Sewage Treatment Plants, Desalination Plants, etc.
PLC Panels for HVAC Projects
PLC Panels for Car park ventilation jobs
With & without HMI
With multiple communication functions to communicate with the field BMS/DCS
Programming, Testing at Factory and at Site & Commissioning.
